●Signal controller EAA-SCBSN6 is required for enabling/disabling the screwdriver in automation application.
| Model No. | Torque Range ±5% | Unloaded
Speed ±10% (r.p.m.) |
Available Screw | Net Weight |
Overall Length |
Power
Source |
Power
Consumption |
Bit
Type |
|||||||||
| Machine Screw(ø) | Tapping Screw(ø) | ||||||||||||||||
| N.m | lbf-in | Kgf-cm | High | Low | mm | in | mm | in | g | lb | mm | in | |||||

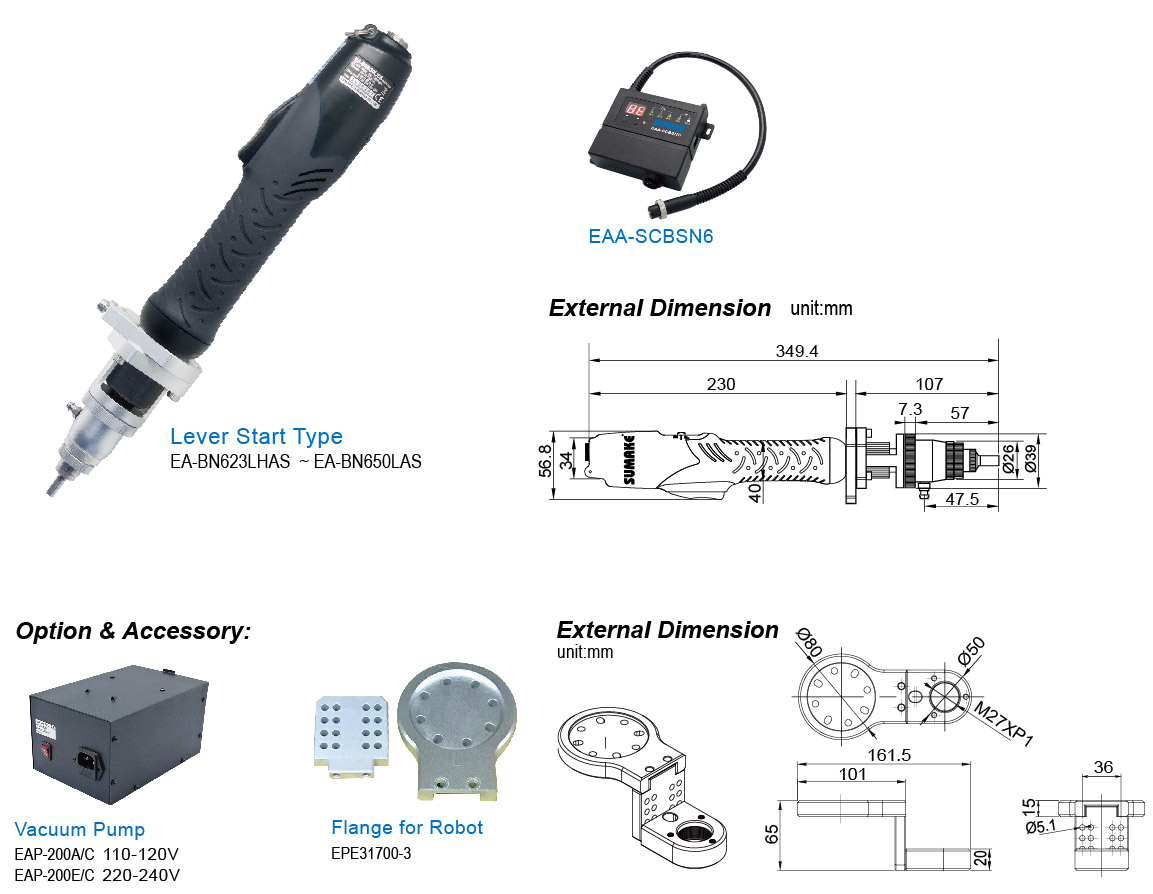

| Lever Start Type | |||||||||||||||||
| EA-BN623LHAS | 0.78-2.25 | 6.9-19.9 | 8-23 | 3000 | 2250 | 2.6-4.0 | 0.11-0.16 | 2.6-3.5 | 0.11-0.14 | 1135 | 3.06 | 344 | 13.54 | DC40V | 90W | B | |
| EA-BN630LAS | 0.98-2.94 | 8.7-26 | 10-30 | 1000 | 750 | 2.6-4.0 | 0.11-0.16 | 2.6-3.5 | 0.11-0.14 | 1135 | 3.06 | 344 | 13.54 | DC40V | 90W | B | |
| EA-BN630LHAS | 0.98-2.94 | 8.7-26 | 10-30 | 2000 | 1500 | 2.6-4.0 | 0.11-0.16 | 2.6-3.5 | 0.11-0.14 | 1135 | 3.06 | 344 | 13.54 | DC40V | 90W | B | |
| EA-BN650LAS | 1.96-4.90 | 17.3-43.4 | 20-50 | 1000 | 750 | 4.0-5.0 | 0.16-0.2 | ≦4 | ≦0.16 | 1135 | 3.06 | 344 | 13.54 | DC40V | 120W | B |  |
